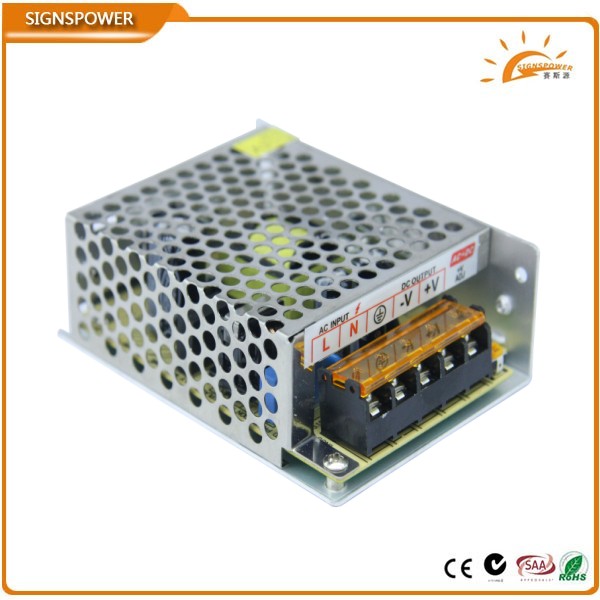

5V 30W Switching Power Supply
产品分类：开光电源
添加时间：2017/9/18 0:26:33
- 产品介绍
|
Model： |
CV-05030A |
|
|
INPUT |
AC input voltage range（V) |
AC 85V-264V |
|
Input current(A) |
0.35A Max |
|
|
Frequency (Hz) |
50Hz～60Hz |
|
|
Efficiency |
80% Typ(230VACFull Load) |
|
|
Inrush current(A) |
Cold star <40A/230VAC |
|
|
Leakage current(mA) |
<3mA/240VAC |
|
|
output |
Output Voltage(V) |
+5VDC |
|
Voltage Regulation |
+1%,-1% |
|
|
Output Current(A) |
6A |
|
|
Current Range (A) |
0～6A |
|
|
Rated Power(W) |
30W |
|
|
Start time, hold-up time(ms) |
Ton≤1000ms,Td≥20ms @230Vac Full Load |
|
|
Rise time(ms) |
Typ:20ms @230Vac Full Load |
|
|
Ripple/Noise(mVp-p) |
120mVp-p |
|
|
Environment
|
working Temperature (°C) |
0°C - +40°C(refer derating curve) |
|
Storage Temperature(°C) |
-20°C - +60°C |
|
|
Humidity |
20% - 90% RH non condensing |
|
|
Protection
|
Over voltage Protection |
>115%-135% Rated output voltage |
|
Over load Protection |
>105%-150% Auto recovery |
|
|
Short circuit Protection |
Latched |
|
|
Others |
Size L*W*H(mm) |
110*78*36 |
|
Weight(g) |
290g |
|
