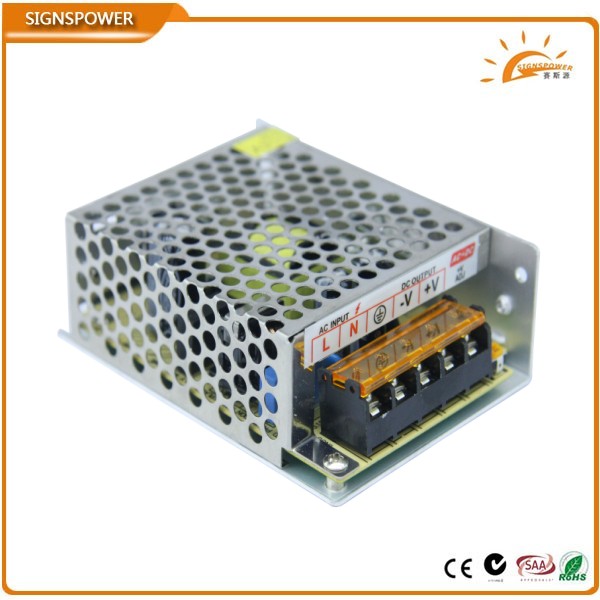

5V/12V/24V 60W Switching Power Supply
产品分类：开光电源
添加时间：2017/9/18 0:35:26
- 产品介绍
|
Model: |
CV-12060A |
|
|
INPUT |
AC input voltage range（V) |
AC 85V-264V |
|
Input current(A) |
2A/115VAC 1A/230VAC |
|
|
Frequency (Hz) |
47Hz～63Hz |
|
|
Efficiency |
76%(230VACFull Load) |
|
|
Inrush current(A) |
cold start 20A/115V AC 40A/230VAC |
|
|
Leakage current(mA) |
<3.5mA/240VAC |
|
|
output |
Output Voltage(V) |
+12VDC |
|
Voltage Regulation |
10.8V～13.2V |
|
|
Output Current(A) |
5A |
|
|
Current Range (A) |
0～5A |
|
|
Rated Power(W) |
60W |
|
|
Start time, hold-up time(ms) |
300ms/230VAC 800ms,/115VAC at full load |
|
|
Rise time(ms) |
50ms at Full Load |
|
|
Ripple/Noise(MVP-p) |
120mVp-p |
|
|
Environment
|
working Temperature (°C) |
-10 centidegree to+60 centidegree |
|
Storage Temperature(°C) |
-20 centidegree to+85 centidegree |
|
|
Humidity |
20% to90%RH non condensing |
|
|
Protection
|
Over voltage Protection |
>115%-135% Rated output voltage |
|
Over load Protection |
>105%-150% Auto recovery |
|
|
Short circuit Protection |
Latched |
|
|
Others |
Size L*W*H(mm) |
110*79*36 |
|
Weight |
190g |
|
