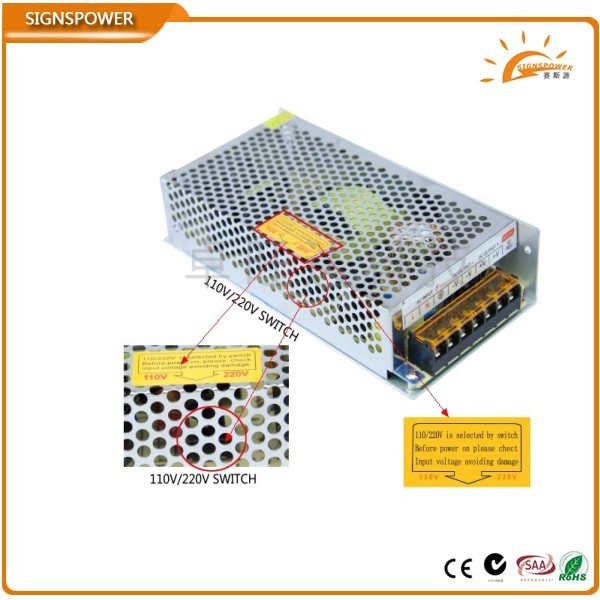

5V/12V/24V 180W Switching Power Supply
产品分类：开光电源
添加时间：2017/9/18 0:48:03
- 产品介绍
|
Model: |
CV-12180A |
|
|
INPUT |
AC input voltage range（V) |
AC 100V-120V/200V-240V |
|
AC Input current(max) |
1.5A |
|
|
Frequency (Hz) |
47Hz～63Hz |
|
|
Efficiency |
>80% |
|
|
Inrush current(A) |
Cold-start 40A/230V |
|
|
Leakage current(mA) |
<3.5mA/240VAC |
|
|
output |
Output Voltage(V) |
+12VDC |
|
Voltage Regulation |
±10% |
|
|
Output Current(A) |
15A |
|
|
Current Range (A) |
0～15A |
|
|
Rated Power(W) |
180W |
|
|
Start ,Rise time(ms) |
200ms,100ms/230VAC at full load |
|
|
hold-up time(ms) |
30ms/230VAC 25ms/115VAC at full load |
|
|
Ripple/Noise(mVp-p) |
120mVp-p |
|
|
Environment
|
working Temperature (°C) |
0°C - +40°C(refer derating curve) |
|
Storage Temperature(°C) |
-20°C - +60°C |
|
|
Humidity |
20% - 90% RH non condensing |
|
|
Protection
|
Over voltage Protection |
>115%-135% Rated output voltage |
|
Over load Protection |
>105%-150% Auto recovery |
|
|
Short circuit Protection |
Latched |
|
|
Others |
Size L*W*H(mm) |
200*100*40 |
|
Weight |
565g |
|
