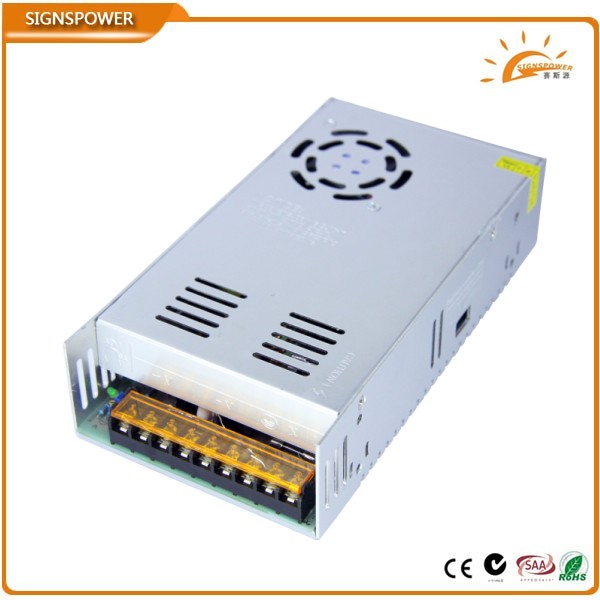

12V/24V/48V 300W Switching Power Supply
产品分类：开光电源
添加时间：2017/9/18 0:59:12
- 产品介绍
|
Model： |
CV-05300A |
|
|
INPUT |
AC input voltage range（V) |
AC 100V-120V/200V-240V (switch replacement) |
|
AC Input current(max) |
6.5A /115V,4A /230V |
|
|
Frequency (Hz) |
47Hz～63Hz |
|
|
Efficiency |
>78% Typ(230VACFull Load) |
|
|
Inrush current(A) |
Current 25A/115V 50A/230V cold start |
|
|
Leakage current(mA) |
<3.5mA/240VAC |
|
|
output |
Output Voltage(V) |
+5VDC |
|
Voltage Regulation |
±10% |
|
|
Output Current(A) |
60A |
|
|
Current Range (A) |
0～60A |
|
|
Rated Power(W) |
300W |
|
|
Start time,hold-up time（ms） |
Ton≤200ms,Td≥30ms @230Vac Full Load |
|
|
Rise time(ms) |
Typ:100ms @230Vac Full Load |
|
|
Ripple/Noise(mVp-p) |
150mVp-p |
|
|
Environment
|
working Temperature (°C) |
0°C - +40°C(refer derating curve) |
|
Storage Temperature(°C) |
-20°C - +60°C |
|
|
Humidity |
20% - 90% RH non condensing |
|
|
Protection
|
Over voltage Protection |
>115%-135% Rated output voltage（13.8-16.2V） |
|
Over load Protection |
>105%-150% Auto recovery |
|
|
Short circuit Protection |
Latched |
|
|
Others |
Size L*W*H(mm) |
215*115*50 |
|
Weight |
865g |
|
